PCB
Flexible PCB Columns

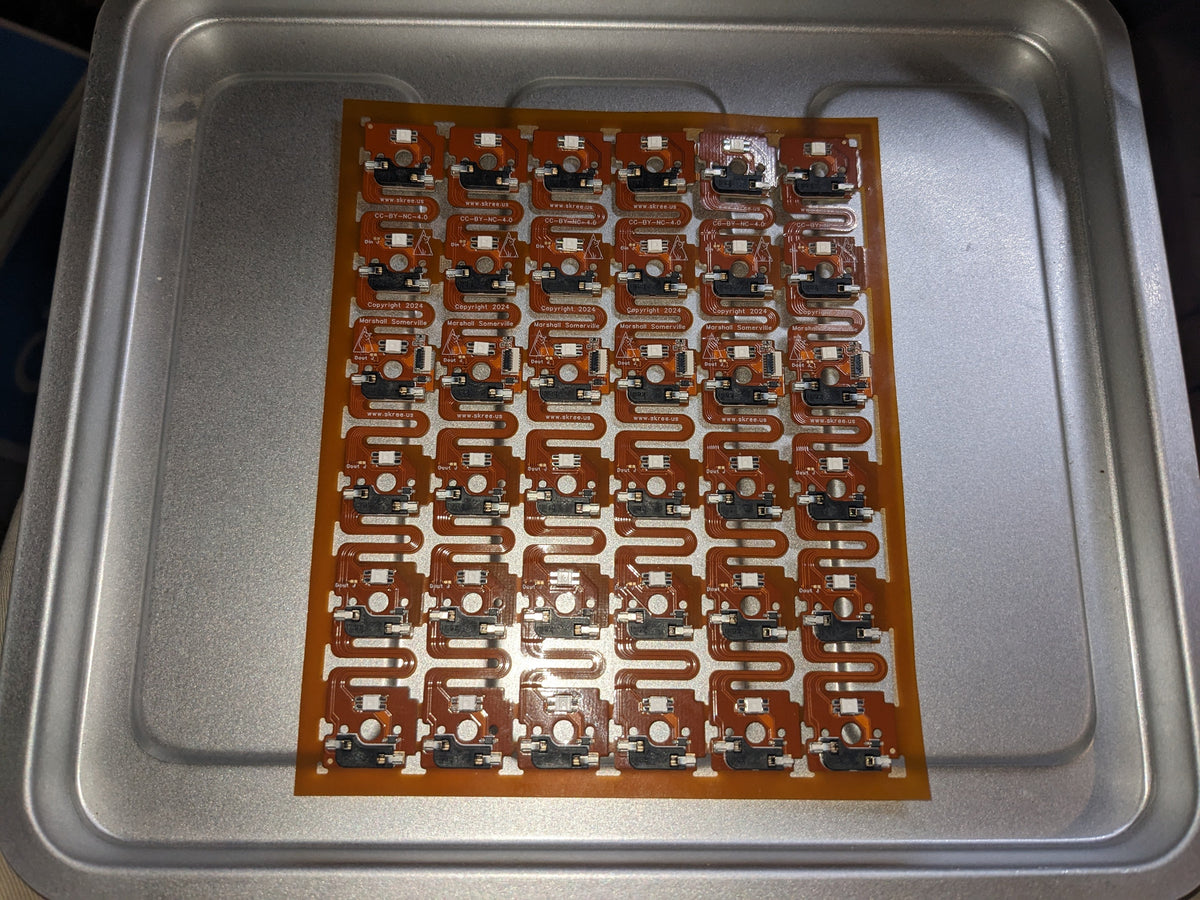

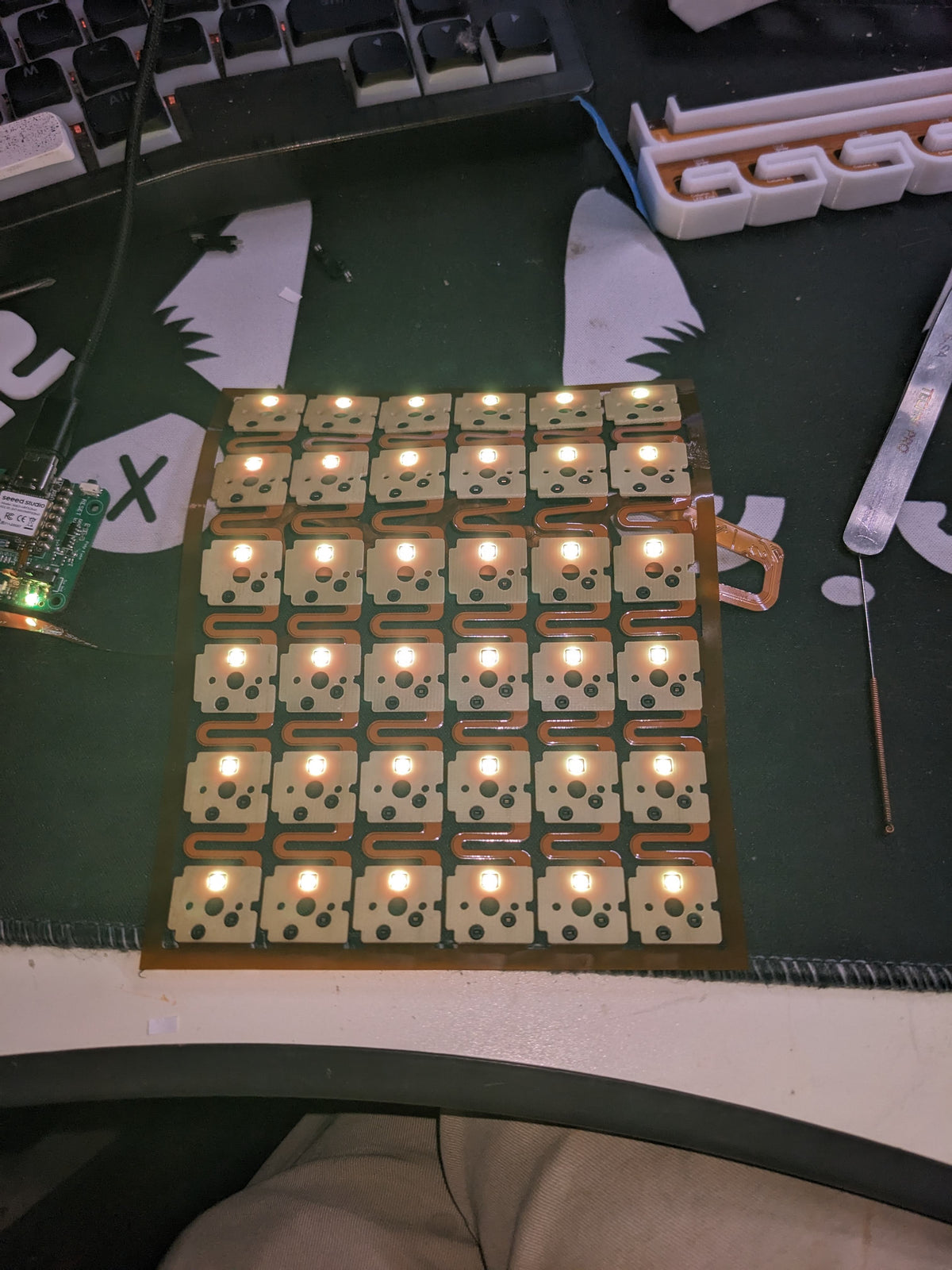

$35.00Fully flexible keyboard columns, designed for the easiest custom keyboard build. Column curvature and Y stagger can be almost anything you like without stretching the PCB.
Columns connect together with a Skree Tail and then to a microcontroller or a Skree Translator. Sold as 6 columns (optional 7th) and as rows, fully assembled with the options you pick.
- Hotswap: sockets and diodes already placed, so you just press in switches.
- Hand-solder: the same column, with switches soldered in.
For MX, the Skree MX socket is recommended. Resin prints work beautifully; FDM can struggle with clean registration keys, and the standard open MX socket works fine too.
ZMK note: add this to your main (not left/right) boardname.conf:
CONFIG_ZMK_KSCAN_MATRIX_WAIT_BEFORE_INPUTS=0
CONFIG_ZMK_KSCAN_MATRIX_WAIT_BETWEEN_OUTPUTS=1
